9. Stress Test Guide¶
Tags: “Stress Test” “Java SDK Demo”
Stress testing via Java SDK demo¶
Java SDK Demo is based on Java SDKBenchmark test collection for stress testing FISCO BCOS nodes。Java SDK Demo provides contract compilation, which can convert Solidity contract files into Java contract files, and also provides sample stress test programs for transfer contracts, CRUD contracts, and AMOP functions。
Step 1. Install the JDK¶
The test program in the Java SDK demo can be run in an environment where JDK 1.8 ~ JDK 14 is deployed. Before executing the test program, make sure that the required JDK version is installed。Take the example of installing OpenJDK 11 on an Ubuntu system:
# Install open JDK 11
$ sudo apt install openjdk-11-jdk
# Verify Java Version
$ java --version
# Output the following:
# openjdk 11.0.10 2021-01-19
# OpenJDK Runtime Environment (build 11.0.10+9-Ubuntu-0ubuntu1.20.04)
# OpenJDK 64-Bit Server VM (build 11.0.10+9-Ubuntu-0ubuntu1.20.04, mixed mode, sharing)
Step 2. Compile the source code¶
# Download source code
$ git clone https://github.com/FISCO-BCOS/java-sdk-demo
$ cd java-sdk-demo
# Compile source code
$ bash gradlew build
Note
When the network cannot access GitHub, call the:/ / download the source code at gitee.com / FISCO-BCOS / java-sdk-demo。
Step 3. Configure Demo¶
Before using the Java SDK demo, you must first configure the Java SDK, including certificate copy and port configuration. For more information, see hereFor more information, see SDK Connection Certificate Configuration。Take FISCO BCOS 3.x Air as an example:
# Copy Certificate(Assuming that the SDK certificate is located in the ~ / fisco / nodes / 127.0.0.1 / sdk directory, change the path according to the actual situation)
$ cp -r ~/fisco/nodes/127.0.0.1/sdk/* conf
# Copy Configuration File
# Note:
# The default RPC port of the FISCO BCOS blockchain system is 20200. If you modify this port, modify the [network.peers] configuration option in config.toml
$ cp conf/config-example.toml conf/config.toml
Step 4. Perform the sample stress test procedure¶
Java SDK Demo provides a series of stress testing programs, including serial transfer contract stress testing and parallel transfer contract stress testing
Note: The following stress test programs are all EVM node execution environments. For more information about node configuration, see Node Configuration
# Enter dist directory
$ cd dist
# Multiple Contracts - Parallel Transfer Contracts Within Contracts:
# groupId: Group ID of pressure test
# userCount: Number of accounts created, recommended (4 to 32)
# count: Total transaction volume of pressure measurement
# qps: Pressure measurement QPS
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceDMC [groupId] [userCount] [count] [qps]
# Multi-Contract - Cross-Contract Parallel Transfer
# groupId: Group ID of pressure test
# userCount: Number of accounts created, recommended (4 to 32)
# count: Total transaction volume of pressure measurement
# qps: Pressure measurement QPS
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceTransferDMC [groupId] [userCount] [count] [qps]
# Pressure measurement serial transfer contract:
# count: Total transaction volume of pressure measurement
# tps: Pressure measurement QPS
# groupId: Group ID of pressure test
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceOk [count] [tps] [groupId]
# Pressure Test Parallel Transfer Contract
# --------------------------
# Add account based on Solidity parallel contract parallelok:
# groupID: Group ID of pressure test
# count: Total transaction volume of pressure measurement
# tps: Pressure measurement QPS
# file: Save the file name of the generated account
$ java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.ParallelOkPerf [parallelok] [groupID] [add] [count] [tps] [file]
# Add account based on precompiled parallel contract precompiled
# (Meaning of parameters as above)
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.ParallelOkPerf [precompiled] [groupID] [add] [count] [tps] [file]
# --------------------------
# Initiate transfer transaction pressure measurement based on Solidity parallel contract parallelok
# groupID: Group ID of pressure test
# count: Total transaction volume of pressure measurement
# tps: QPS of pressure measurement
# file: Transfer User File
$ java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.ParallelOkPerf [parallelok] [groupID] [transfer] [count] [tps] [file]
# Initiate Transfer Pressure Measurement Based on Precompiled Parallel Contract Precompiled
$ java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.ParallelOkPerf [precompiled] [groupID] [transfer] [count] [tps] [file]
# Pressure Test Parallel SmallBank Transfer Contract
# --------------------------
# Add account based on Solidity parallel contract SmallBank(Add):
# groupID: Group ID of pressure test
# contractsNum: Number of DMC parallel threads, set according to the number of test machine cores
# count: Total transaction volume of pressure measurement
# tps: Pressure measurement QPS
# file: Save the file name of the generated account
# parallel: true or false, whether the DAG is enabled
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceSmallBank [groupId] [solidity] [add] [contractsNum] [count] [qps] [file] [parallel(true/false)].
# Add account based on precompiled parallel contract precompiled
# (Meaning of parameters as above)
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceSmallBank [groupId] [precompiled] [add] [contractsNum] [count] [qps] [file] [parallel(true/false)].
# --------------------------
# Initiate transfer transaction based on Solidity parallel contract SmallBank(Transfer):
# groupID: Group ID of pressure test
# contractsNum: Number of DMC parallel threads, set according to the number of test machine cores
# count: Total transaction volume of pressure measurement
# tps: QPS of pressure measurement
# file: Transfer User File
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceSmallBank [groupId] [solidity] [transfer] [contractsNum] [count] [qps] [file] [parallel(true、false)].
# Initiate Transfer Pressure Measurement Based on Precompiled Parallel Contract Precompiled
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceSmallBank [groupId] [precompiled] [transfer] [contractsNum] [count] [qps] [file] [parallel(true、false)].
# Pressure Measurement Parallel CpuHeavy Contract
# --------------------------
# Pressure Measurement Based on Precompiled Parallel Contract Pressure Measurement CpuHeavy:
# groupID: Group ID of pressure test
# contractsNum: Number of DMC parallel threads, set according to the number of test machine cores
# count: Total transaction volume of pressure measurement
# tps: Pressure measurement QPS
# parallel: true or false, whether the DAG is enabled
# sort array size: Fast array length, default is 100000
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceCpuHeavy [groupId] [solidity] [contractsNum] [count] [qps] [parallel(true/false)] [sort array size(default 100000)].
# Precompiled-based parallel contract pressure measurement CpuHeavy
# (Meaning of parameters as above)
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceCpuHeavy [groupId] [precompiled] [contractsNum] [count] [qps] [parallel(true/false)] [sort array size(default 100000)].
# KVTable contract pressure measurement
# count: Total transaction volume of pressure measurement
# tps: Pressure measurement QPS
# groupId: pressure test group
# useKVTable: KV flag value of pressure test, true is set method, false is get method
# valueLength: Length of test data, 256 by default
$ java -cp 'conf/:lib/:apps/' org.fisco.bcos.sdk.demo.perf.PerformanceKVTable [count] [tps] [groupId] [useKVTable] [valueLength]
The following are stress tests for the WASM environment
# Pressure Test Parallel Transfer Contract
# --------------------------
# Add an account based on the Liquid parallel contract parallelok:
# groupID: Group ID of pressure test
# count: Total transaction volume of pressure measurement
# tps: Pressure measurement QPS
# file: Save the file name of the generated account
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.ParallelLiquidPerf [groupId] [add] [count] [tps] [file]
# Initiating Transfer Transaction Pressure Measurement Based on Liquid Parallel Contract parallelok
# groupID: Group ID of pressure test
# count: Total transaction volume of pressure measurement
# tps: QPS of pressure measurement
# file: Transfer User File
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.ParallelLiquidPerf [groupId] [transfer] [count] [tps] [file]
Example of pressure test¶
Example test environment:
Hardware Condition: Apple M1 Max(10 cores CPU)，32GB LPDDR5 RAM，1T SSD
System version: macOS 12.0.1
Compile environment: clang-1300.0.29.3, cmake 3.22.1
FISCO BCOS version: master branch, Git Commit: c0e9dadb6e7ad1bbaf3128a27803226fb7ba6a9a, build type: Darwin / appleclang / release
Pressure Test Material Preparation¶
Build the four-node environment of FISCO BCOS Air version. Refer to the link: Build the FISCO BCOS Alliance Chain of Air Version
Add ‘-DCMAKE _ BUILD _ TYPE = Release’ and compileReleaseBinary version for higher performance and better pressure test performance。
# linux
cmake3 .. -DCMAKE_BUILD_TYPE=Release -DBUILD_STATIC=ON
# macOS
export SDKROOT=/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk && CC=/usr/bin/clang CXX=/usr/bin/clang++ && cmake .. -DCMAKE_BUILD_TYPE=Release -DBUILD_STATIC=ON
After the setup is completed, you can see that a four-node environment has been created:
tree -L 2 ～/fisco/nodes
~/fisco/nodes
├── 127.0.0.1
│ ├── ca
│ ├── fisco-bcos
│ ├── node0
│ ├── node1
│ ├── node2
│ ├── node3
│ ├── sdk
│ ├── start_all.sh
│ └── stop_all.sh
└── ca
Before starting the four nodes, modify the limit on the number of transaction blocks of the Genesis block, and change the log level of all node configurations to INFO, configure the number of RPC threads to test the number of CPU cores of the machine, and disable the SSL communication of the node. For node configurations, please refer to here: Introduction to Node Configuration。Take node0 for example:
# Modify the config.genesis configuration of node0 and increase the number of block _ tx _ count _ limit to 2000
vim ～/fisco/nodes/127.0.0.1/node0/config.genesis
[consensus]
consensus_type=pbft
; Modify the value to 2000, the default is 1000
; the max number of transactions of a block
block_tx_count_limit=2000
consensus_timeout=3000
leader_period=1
node.0=18325b7816386b0986a00e1059219ffe898059cfc4b8496551c7262d09836e3901ef1ad68f3a72b311628292c535680800b31ec2772d1d240b658fcdd3a658af: 1
node.1=4fcf0ebaaa1e5646519142ff91b937618cfd3d4c9571071cb02dbab19a5da95b1d70dcc7b87620290826fb734f46e7bbf3dde9f6071cd31b16ca17301e3a6ae8: 1
node.2=05daa92decd4144b31332ee1356c1a7f68f83b88cbbe8d5e0d141a0598b4ec2d2199adea18ce0a311b3d11001ef1121a8500b5fb33e1bef268600789bae1650e: 1
node.3=027f25b1597d363babe412962b05995d56033636cb061737beeb7e9a6c811e19f1fccf763acc8271ba542eb4fe5d798e9b06ce0e28ef73285e7b86778ad879ca: 1
If the node has already been started, you need to delete the data in the data directory of the node and restart the node to modify the creation block configuration。
# Modify the config.ini configuration of node0
vim ～/fisco/nodes/127.0.0.1/node0/config.ini
Configure the number of RPC threads to test the number of CPU cores of the machine and disable the SSL communication of the node:
[rpc]
listen_ip=0.0.0.0
listen_port=20200
; The number of threads is configured to test the number of CPU cores of the machine
thread_count=4
sm_ssl=false
; Open this item
disable_ssl=true
Change the node log level to INFO:
[log]
enable=true
log_path=./log
; Level changed to INFO
level=INFO
max_log_file_size=200
Increase the limit on the number of trading pools if the pressure measurement volume is large。If the total number of transactions in the pressure test is 500000, set ‘limit’ to be greater than 500000, otherwise the node will report a ‘txpoolIsFull’ error。The default is 15000, and the following sets the transaction pool size to 1500000。
[txpool]
; size of the txpool, default is 15000
limit=1500000
After the configuration is complete, start the four nodes:
cd ～/fisco/nodes/127.0.0.1
bash start_all.sh
try to start node0
node0 start successfully
try to start node1
node1 start successfully
try to start node2
node2 start successfully
try to start node3
node3 start successfully
Continue to prepare the pressure test program, this example uses’ java-sdk-demo ‘for stress testing, please refer to the first section of this article for details: linkI will not repeat it here。
Configure the Java SDK demo to send transactions to four nodes:
# Enter the java-sdk-demo configuration item
vim ~/fiso/java-sdk-demo/dist/conf/config.toml
Configure four nodes. The IP addresses and ports are based on the actual conditions:
[network]
peers=["127.0.0.1:20200", "127.0.0.1:20201", "127.0.0.1:20202", "127.0.0.1:20203"] # The peer list to connect
After configuring the Java SDK demo, change the log level of the Java SDK to ERROR:
# Enter the log configuration items of java-sdk-demo
vim ~/fiso/java-sdk-demo/dist/conf/log4j2.xml
vim ~/fiso/java-sdk-demo/dist/conf/clog.ini
Modify the log level:
log4j2.xml
<Loggers>
<Root level="error">
<AppenderRef ref="Demo"/>
</Root>
</Loggers>
clog.ini
[log]
enable=true
log_path=./log
stat_flush_interval=60
; Modified to error
; info debug trace
level=error
max_log_file_size=200
Start Stress Test¶
Return to the ‘java-sdk-demo’ compiled environment and run the following command to start the stress test:
The stress test here is to deploy 32 Account Solidity contracts to the group group and send 500,000 transactions with a QPS of 20,000。
cd ~/fiso/java-sdk-demo/dist/
java -cp 'conf/:lib/*:apps/*' org.fisco.bcos.sdk.demo.perf.PerformanceDMC group 32 500000 20000
Test Results¶

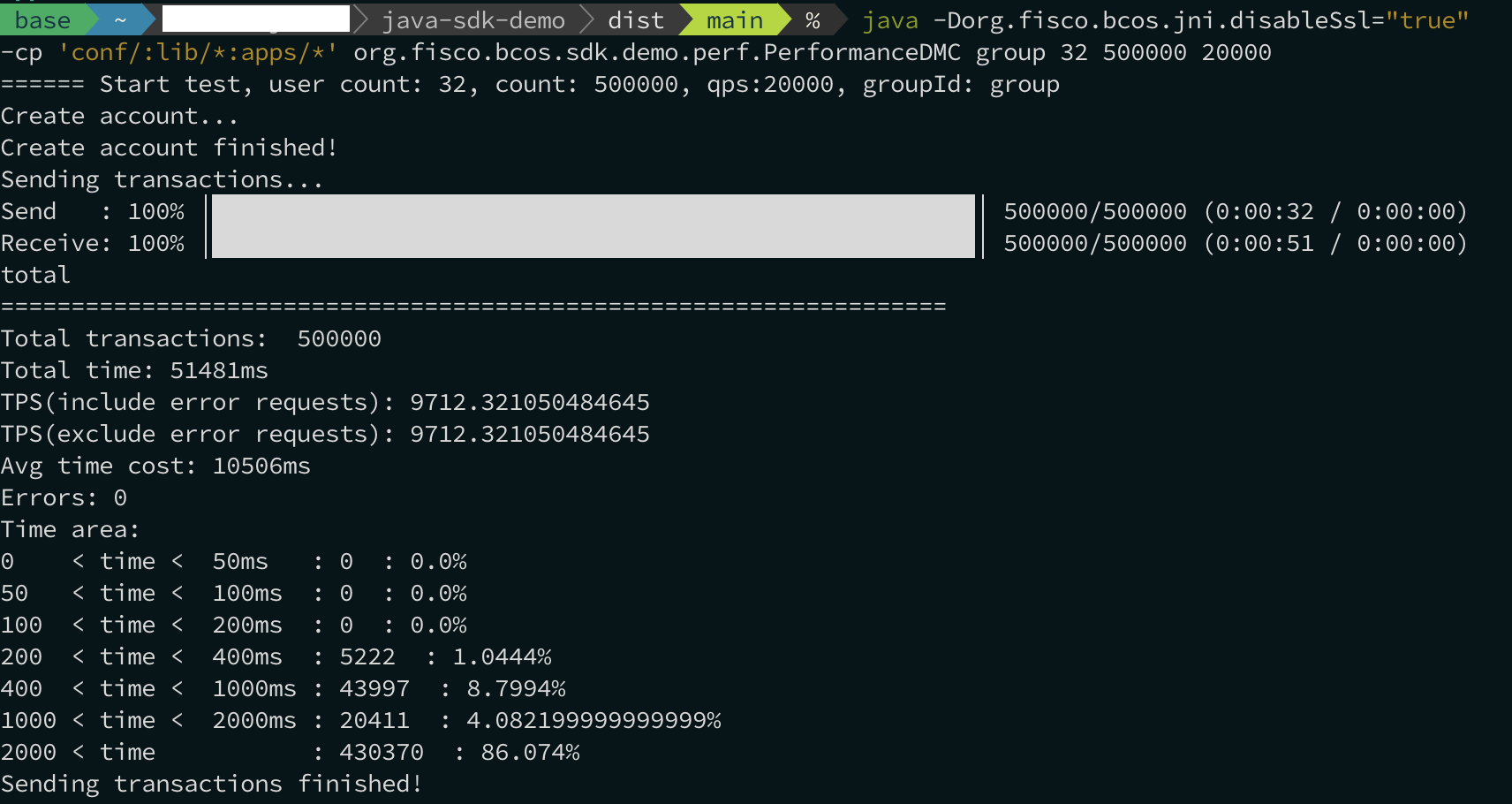

Stress test results:
-A total of 500,000 transactions were initiated, the time to send to the node was 32 seconds, and the time to collect all transaction receipts was 51 seconds。
TPS is 9712.321050484645 (transactions / sec)
