Ansible for FISCO BCOS + Webase-deploy efficiently builds enterprise-level production environment alliance chain¶

Author ： Wuque ｜ Xi’an R & D Center of Shenzhen Yingxing Chain Alliance Software Engineering Co., Ltd

1 Background Introduction¶

If a worker wants to do a good job, he must first sharpen his tools. I have the artifact in my hand！

1.1 Ansible for FISCO BCOS¶

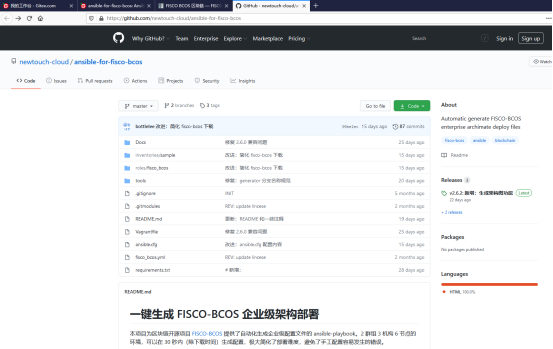

Ansible for FISCO BCOS provides an ansible-playbook that automates the generation of enterprise profiles。The environment of 2 groups, 3 institutions and 6 nodes can generate configurations within 30 seconds (except the download time), which greatly simplifies the difficulty of deployment and avoids errors that are prone to manual configuration。

Github Access Address

Gitee Community Developers Provide Access Address

Gitee community developers provide source code download address https://gitee.com/hailong99/ansible-for-fisco-bcos.git

git clone https://gitee.com/hailong99/ansible-for-fisco-bcos.git

1.2 Webase-deploy¶

Deploying WeBASE with one click allows you to quickly build a WeBASE console environment on the same machine, facilitating users to quickly experience the WeBASE management platform。One-click deployment and construction: Node (FISCO-BCOS 2.0+), management platform (WeBASE-Web), node management subsystem (WeBASE-Node-Manager), node front subsystem (WeBASE-Front), signature service (WeBASE-Sign)。Among them, the construction of the node is optional, you can choose to use the existing chain or build a new chain through the configuration。

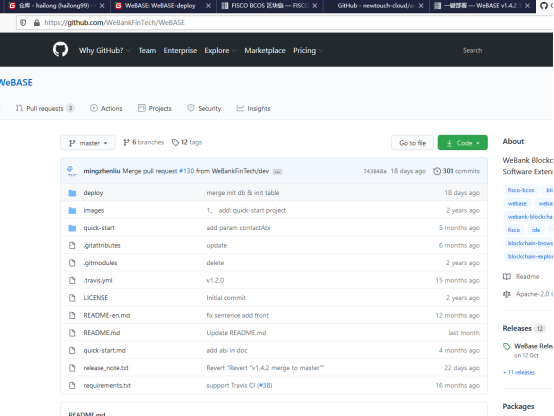

Github Access Address

One-click download command

wget https://github.com/WeBankFinTech/WeBASELargeFiles/releases/download/v1.4.2/webase-deploy.zip

Gitee community developers provide source code download address https://gitee.com/hailong99/WeBASE.git

git clone https://gitee.com/hailong99/WeBASE.git

2 Experimental architecture design¶

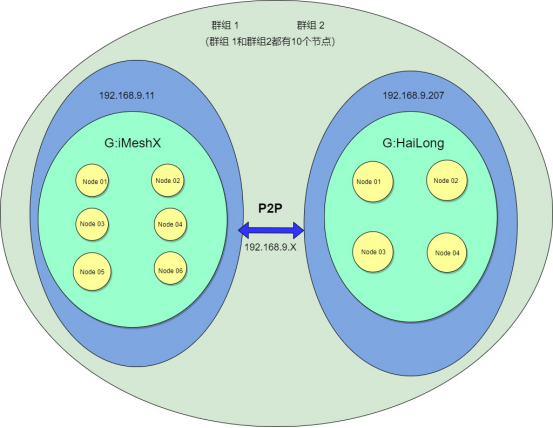

2.1 Network topology design¶

3 Environmental preparation¶

3.1 Hardware preparation¶

Server A: IP 192.168.9.11

System Centos8.3

Server B: IP 192.168.9.207

System Centos7.6

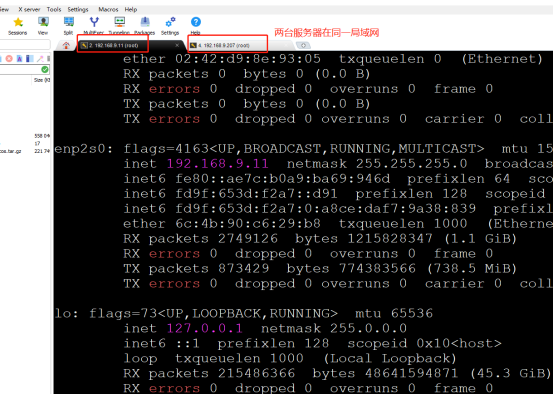

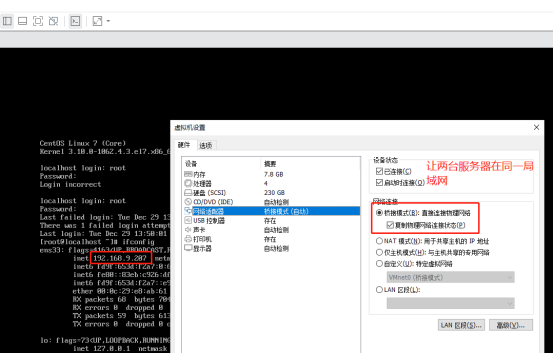

Two servers in the same LAN, network access to each other is normal。

3.2 Software preparation¶

Both servers have basic components installed such as: OpenSSL, Java8, Python3, Git, Vim, etc。

Server A: Database MySQL

4 Use the Ansible tool to link¶

4.1 Download Ansible¶

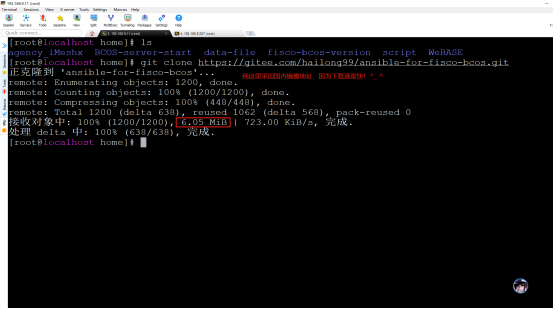

git clone https://gitee.com/hailong99/ansible-for-fisco-bcos.git

4.2 Install Ansible¶

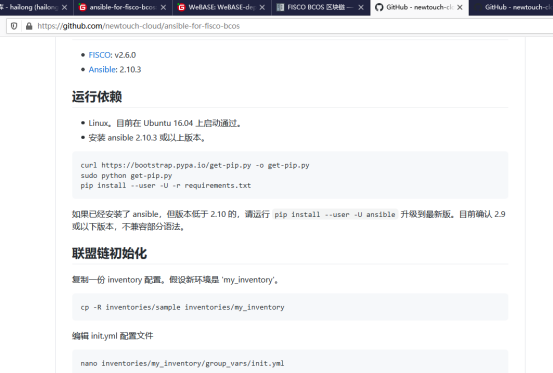

Follow the installation instructions in GitHub Access

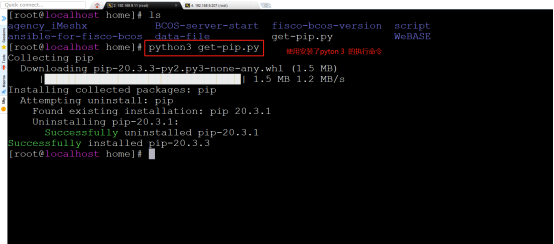

python3 get-pip.py

cd ansible-for-fisco-bcos/

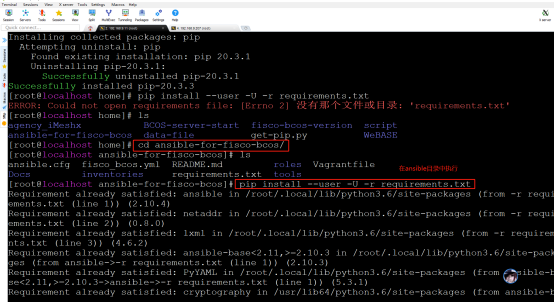

pip install --user -U -r requirements.txt

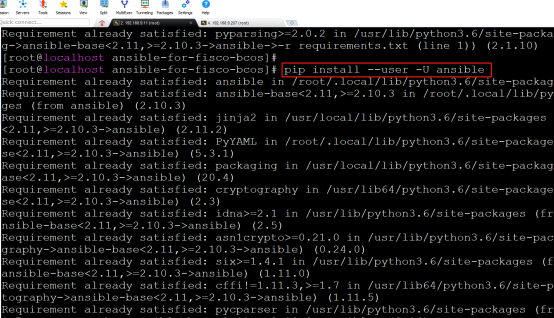

pip install --user -U ansible

4.3 Alliance chain initialization¶

Copy an inventory configuration。Suppose the new environment is’my_inventory’。

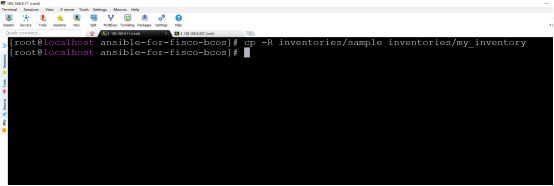

cp -R inventories/sample inventories/my_inventory

4.4 Editing the init.yml Configuration File¶

nano inventories/my_inventory/group_vars/init.yml
或
vim inventories/my_inventory/group_vars/init.yml

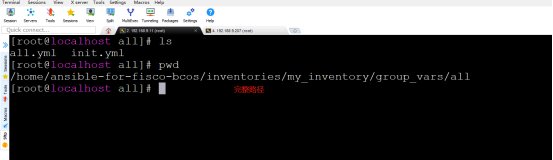

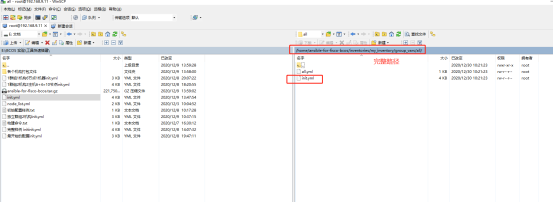

After the field experiment path is: inventories / my _ inventory / group _ vars / all / init.yml

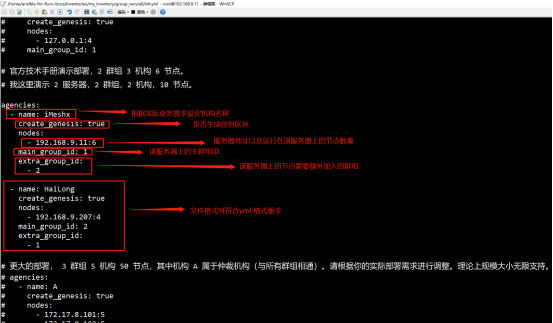

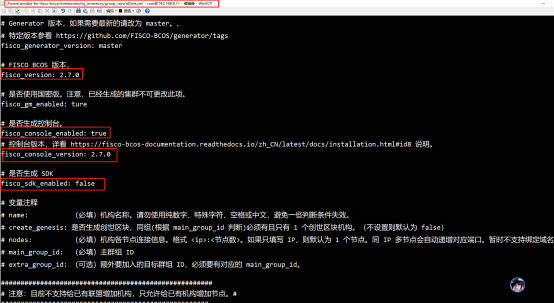

Edit chain attributes according to actual business requirements, such as binary file version, whether to generate console, and whether to generate SDK。The notes in the document are clearly written, combined with business understanding。

Edit the chain attributes according to the actual needs of the business, such as: organization, node, group。The notes in the document are clearly written, combined with business understanding。

4.5 Generate Architecture Diagram¶

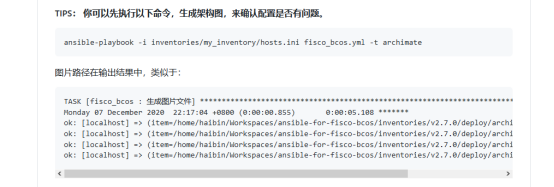

ansible-playbook -i inventories/my_inventory/hosts.ini fisco_bcos.yml -t archimate

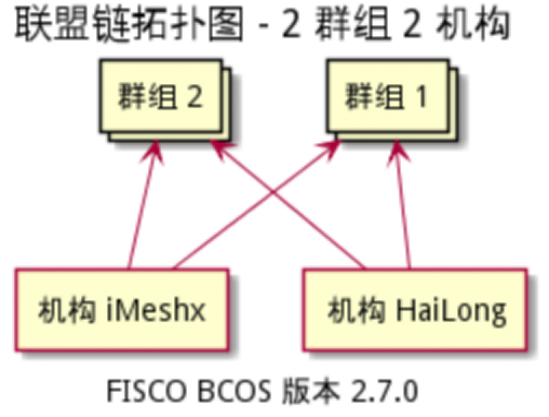

Relationship between institutions and groups:

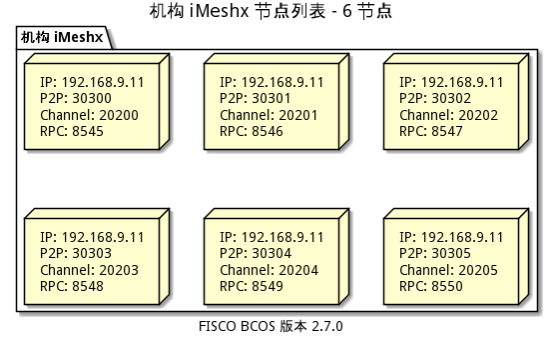

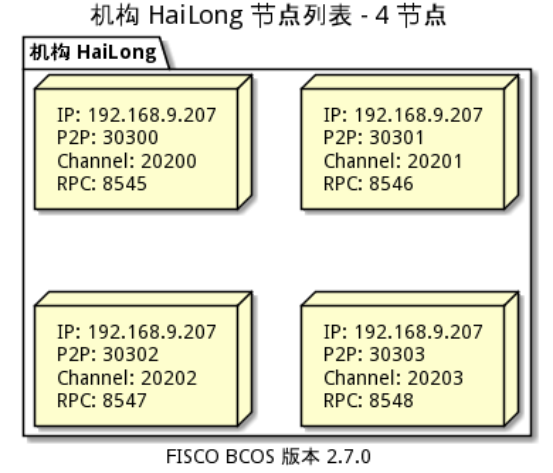

Configuration Diagram Generated by Institution iMeshx:

Configuration Diagram Generated by Institution HaiLong:

4.6 Generate the underlying files of the alliance chain¶

cd /home/ansible-for-fisco-bcos/

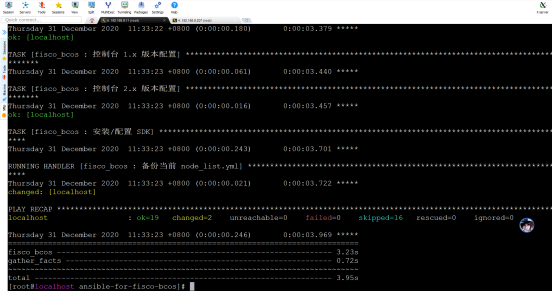

ansible-playbook -i inventories/my_inventory/hosts.ini fisco_bcos.yml

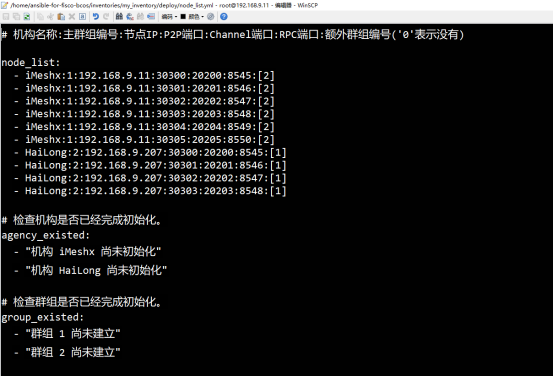

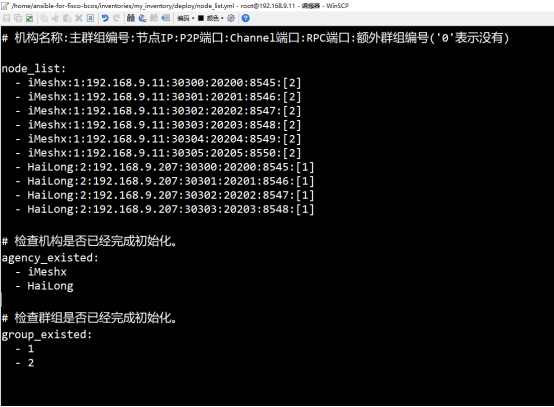

Generated Configuration Information

Note that after the command is executed, the node _ list.yml file will show that the organization and group have not been initialized. If you need to execute the command again, the group and organization have been initialized。

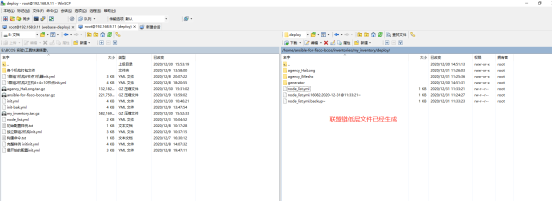

According to the configuration information, the underlying file of the alliance chain has been generated

4.7 Running Alliance Chain Underlying Services on Production Server¶

4.7.1 Package overall organization documents first¶

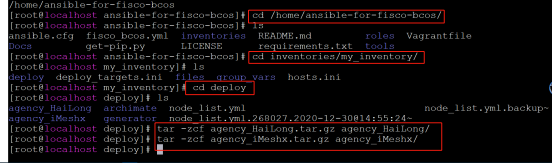

cd /home/ansible-for-fisco-bcos/inventories/my_inventory/deploy
tar -zcf agency_HaiLong.tar.gz agency_HaiLong/
tar -zcf agency_iMeshx.tar.gz agency_iMeshx/

4.7.2 Upload the packaged files to the corresponding alliance chain production server¶

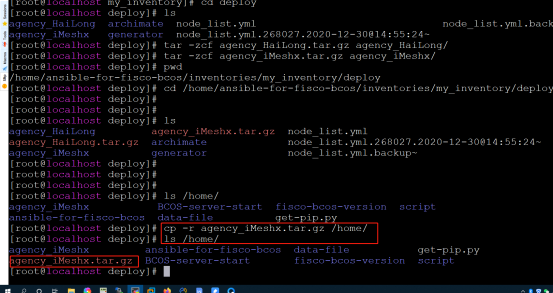

cp -r agency_iMeshx.tar.gz /home/

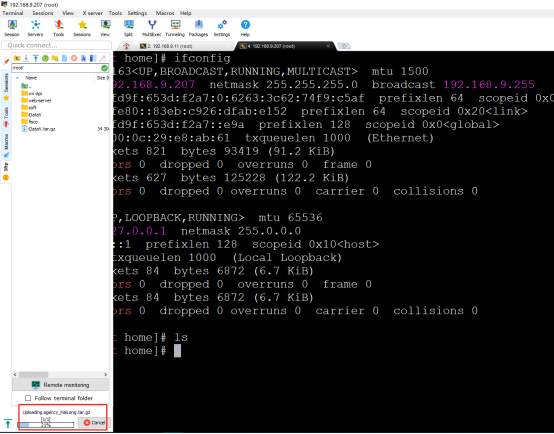

192.168.9.207 The server is uploaded directly with the ssh terminal tool and moved to the planned path。

4.7.3 Decompress the packaged organization file on the production server¶

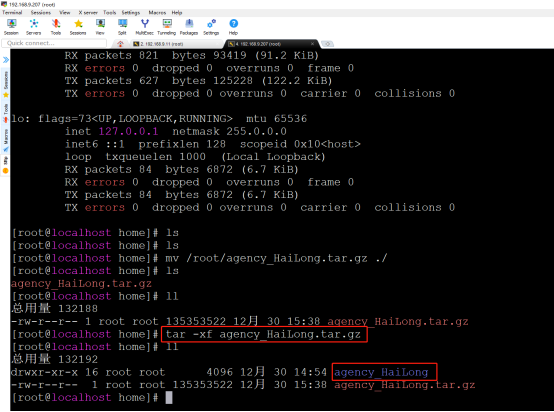

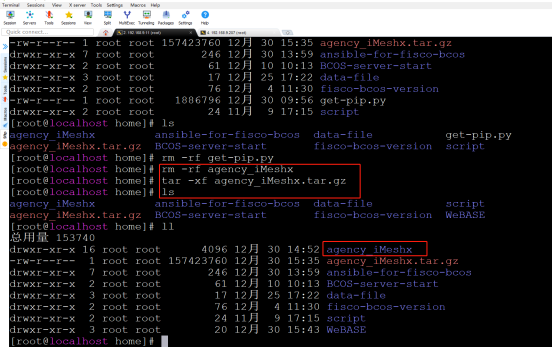

tar -xf agency_iMeshx.tar.gz

4.7.4 Start Node¶

cd /home/agency_iMeshx/fisco_deploy_agency_iMeshx

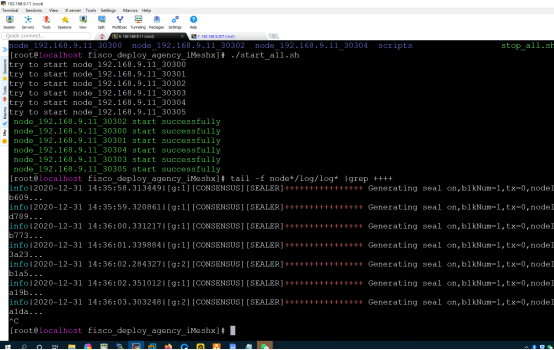

./start_all.sh

192.168.9.11 View consensus on server

cd /home/agency_iMeshx/fisco_deploy_agency_iMeshx

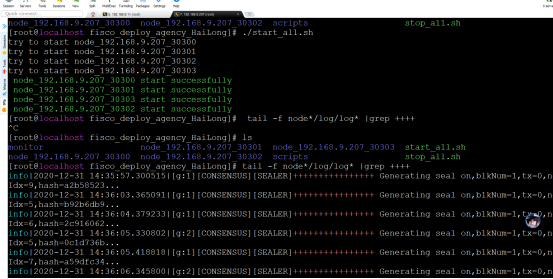

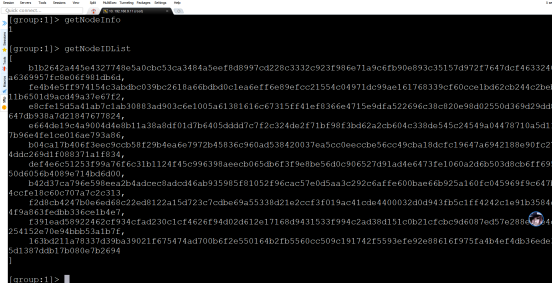

tail -f node*/log/log* |grep ++++

192.168.9.207 Start Node View Consensus on Server

So far, our two servers have completed the construction of the chain using the Ansible for FISCO BCOS artifact, in which the tool automatically completes the commands for generating and copying many files, which is very simple and efficient ^ _ ^!

5 Use the Webase-deploy tool to build Webase¶

The underlying service of the alliance chain already exists and needs to be managed by Webase

5.1 Install webase-deploy¶

5.1.1 Download webase-deploy¶

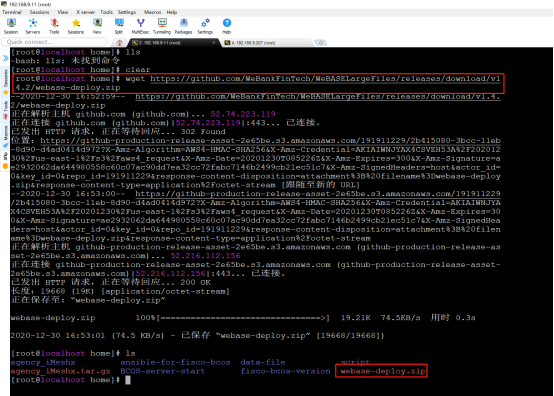

wget https://github.com/WeBankFinTech/WeBASELargeFiles/releases/download/v1.4.2/webase-deploy.zip

5.1.2 Unzip webase-deploy¶

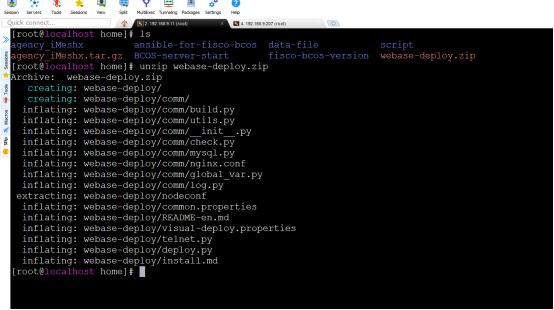

unzip webase-deploy.zip

5.2 Configure webase¶

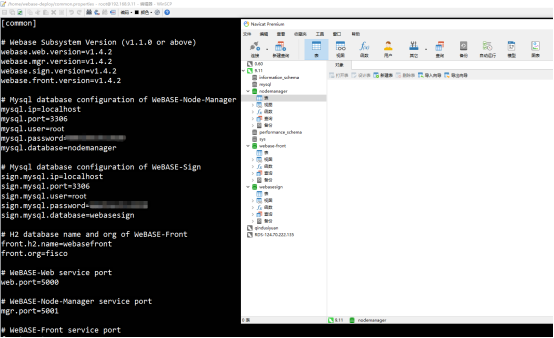

5.2.1 Configure each subsystem version information and database information¶

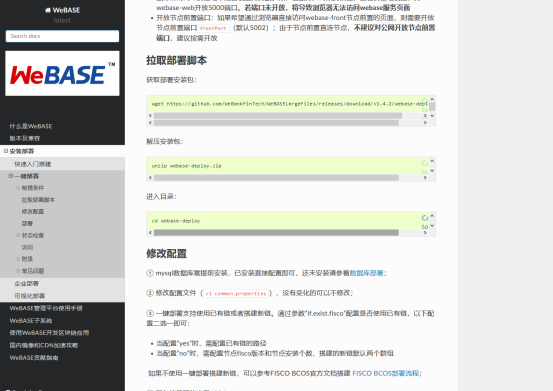

Edit the configuration file: / home / webase-deploy / common.properties Follow the official tutorial and configuration file prompts to configure the subsystem version information and database information respectively。

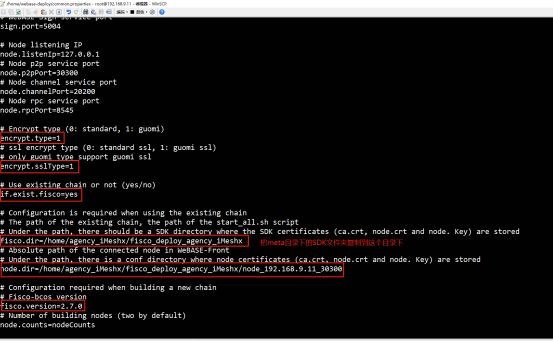

5.2.2 Configure the port number, encryption method, existing chain, certificate path and chain program version of each subsystem¶

5.2.3 Document adjustment¶

(1) Copy / home / agency _ iMeshx / script / gm to / home / agency _ iMeshx / meta / sdk

(2) Copy / home / agency _ iMeshx / meta / sdk to the node directory / home / agency _ iMeshx / fisco _ deploy _ agency _ iMeshx

(3) Copy the three certificates under meta / sdk / to webase-front / conf(You need to execute the installation command to download the webase-front file before you can copy it successfully)

5.2.4 Configuring Nginx¶

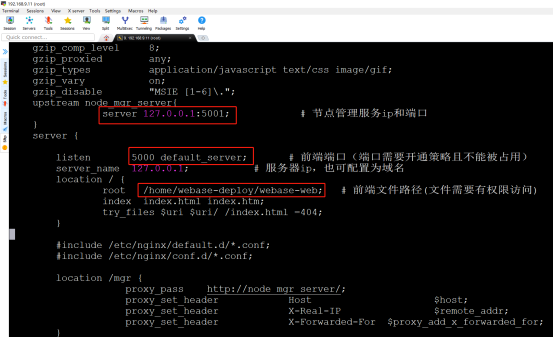

configure the proxy ip address and port number of nginx according to the plan

5.2.5 Configure webase-front (you need to run the installation command to download the webase-front file before configuring)¶

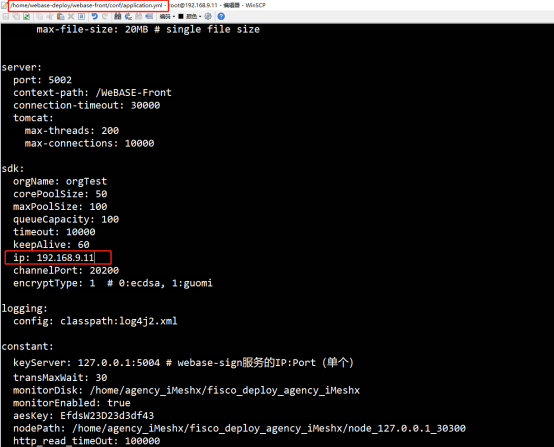

The default IP address of SDK is 127.0.0.1, which needs to be changed to 192.168.9.11 and then saved

5.3 Installation and deployment¶

5.3.1 Execute installation commands¶

cd /home/webase-deploy

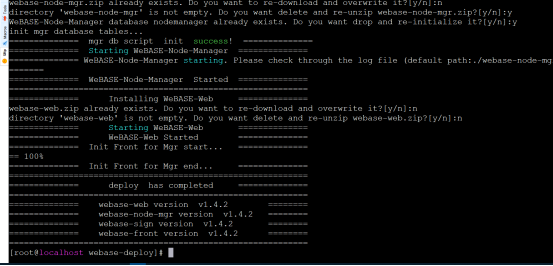

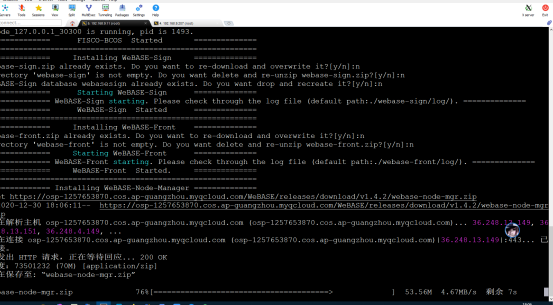

python3 deploy.py installAll

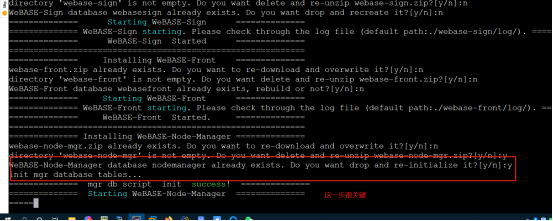

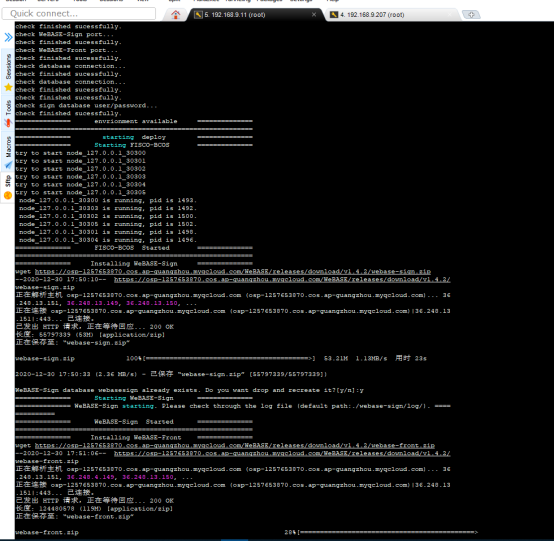

Note: the database initialization of webase-node-mgr is very important, the first run must choose y

View log information as prompted when errors are found。

6 Function test¶

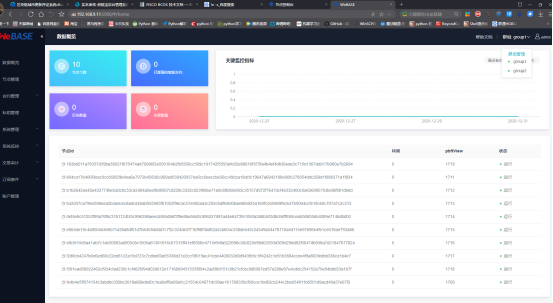

6.1 Access Address: 192.168.9.11:5000¶

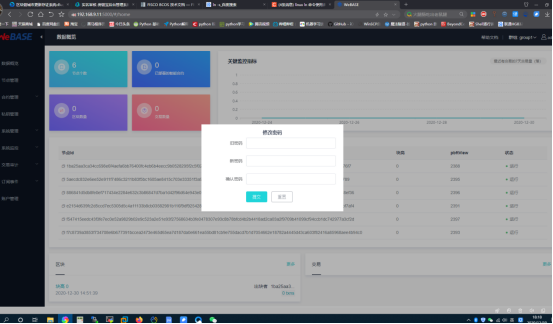

Administrator password update required for initial login

6.2 Viewing Group Information¶

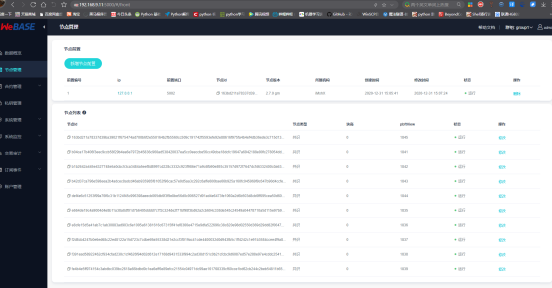

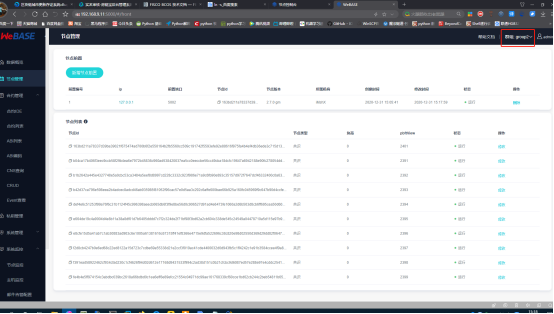

6.3 Viewing Node Information Consensus Status¶

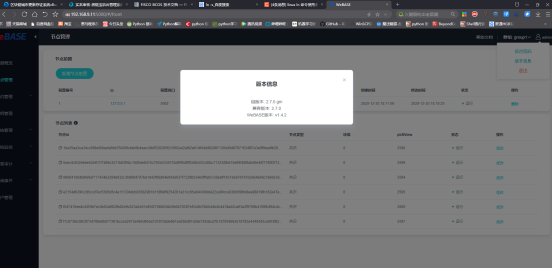

6.4 Viewing System Version Information¶

6.5 Adding Test Users¶

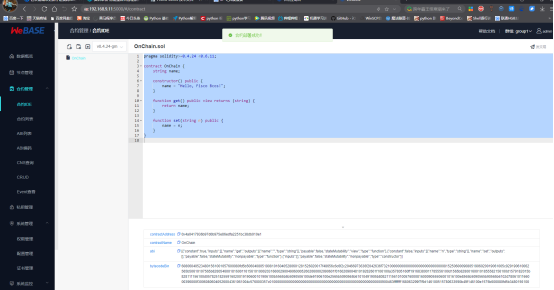

6.6 Contract compilation is normal¶

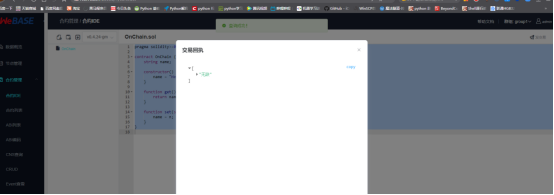

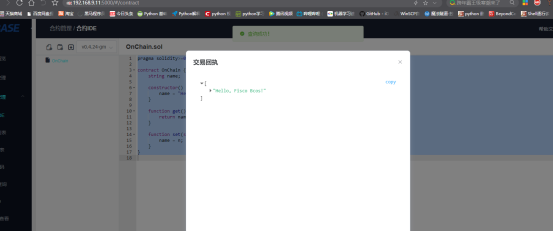

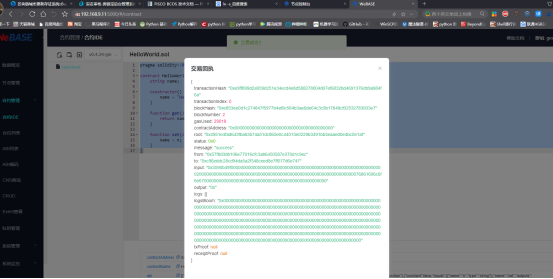

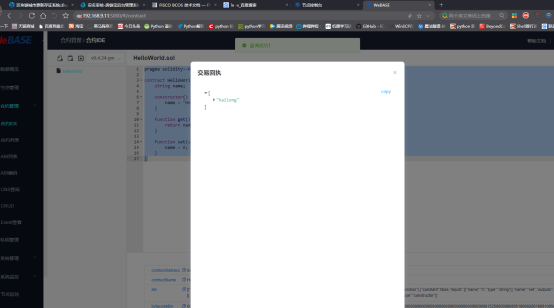

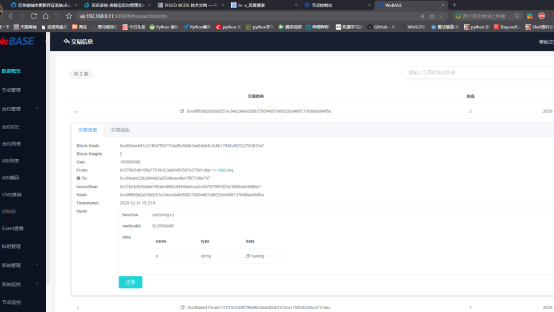

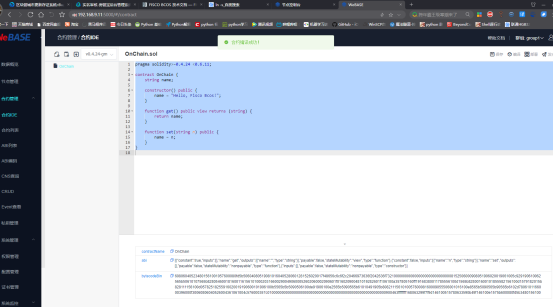

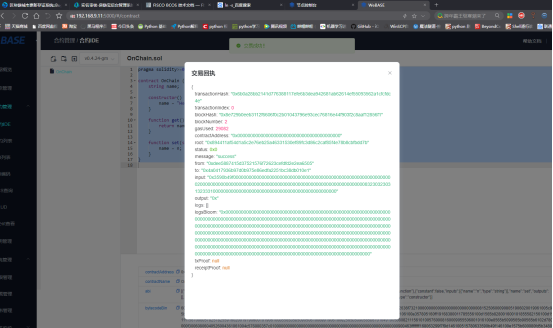

6.7 Normal contract deployment¶

6.8 Normal trading¶

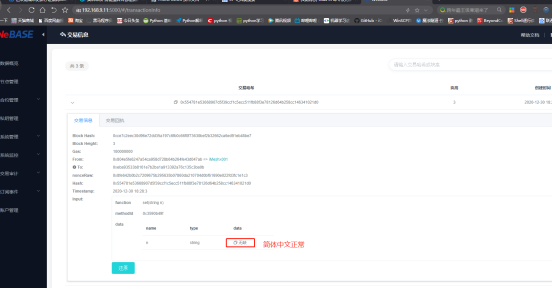

6.9 Simplified Chinese Chain Normal¶

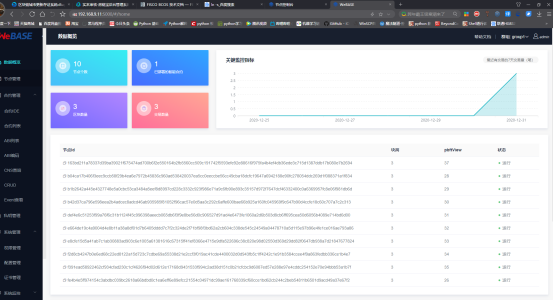

6.10 Home page information statistics normal¶

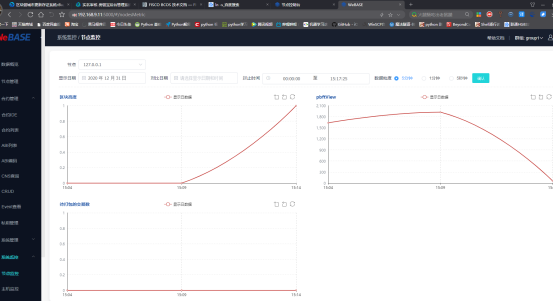

6.11 Node monitoring is normal¶

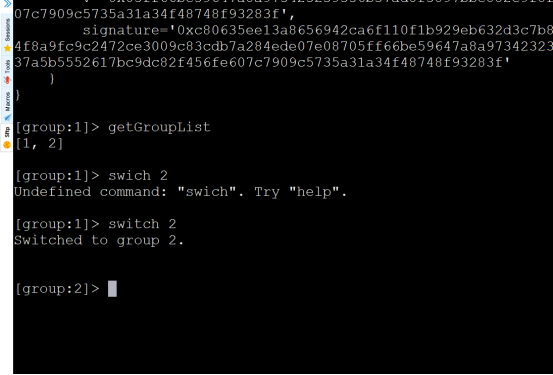

6.12 Node information of group 2 is normal¶

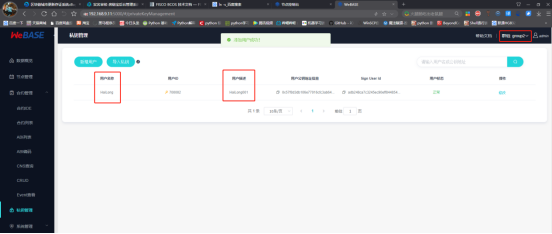

6.13 Group 2 users added normally¶

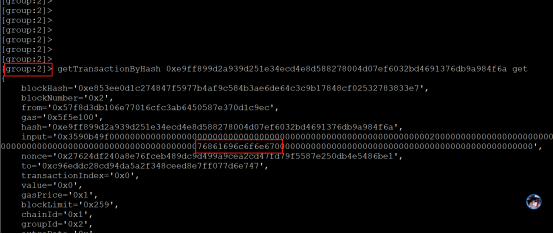

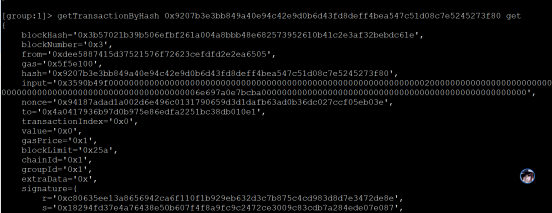

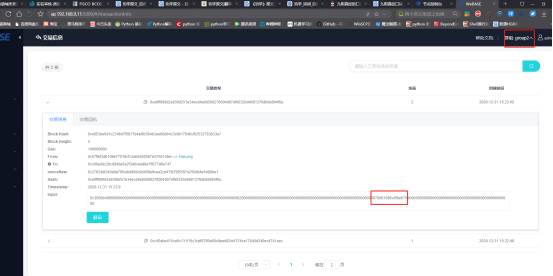

6.14 Group 2 Data Uplinking and Query Normal¶

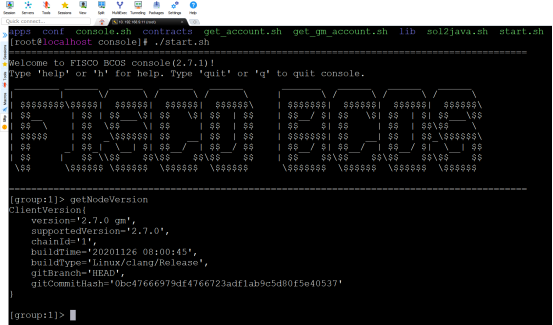

6.15 Console usage is normal¶

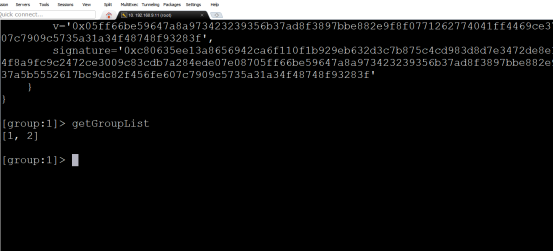

So far, we have completed the management and functional testing of the alliance chain using webase-deploy, and we are done！^_^ 。
